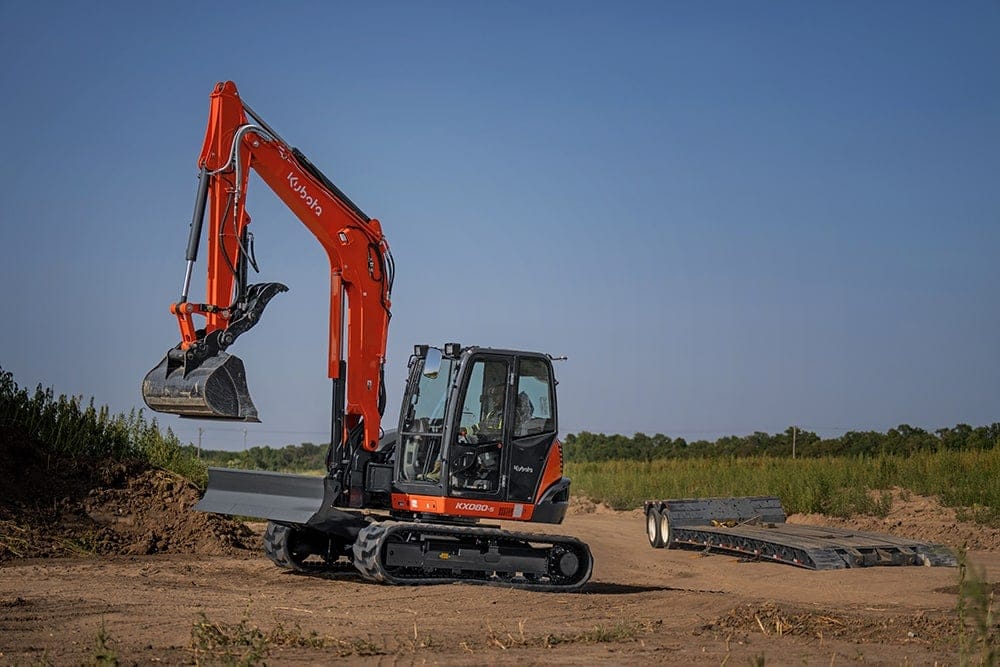

KX080-5
COMPACT EXCAVATORS
MSRP AS LOW AS
$0.00
If you’re looking for top-of-the-line performance from your compact excavator, you’ve found what you’re looking for with the Kubota KX080-5. You’ll never struggle to get the job done with the KX080-5’s overpowering 66.6 horsepower produced by Kubota’s V3307-CR-TE5 engine. The KX080-5 is excavation bliss, and the only thing that’s missing is you. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
$0 Down, 0% A.P.R. for up to 48 Months or Save up to $6,000 on Construction Equipment!
Construction
Save up to $6,000 or pay 0% A.P.R. for up to 48 Months with 0% Down on KX AND U SERIES!
EXCAVATORS
Specifications
Arm Breakout Force, Lbs (kgf)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
Blade Height, In (mm)
Blade Width, Ft (mm)
Bucket Breakout Force, Lbs (kgf)
Crawler Length, Ft (mm)
Displacement (cu. In.)
Engine Model
Fuel Reservoir, Gal (l)
Ground Contact Pressure Psi, Kgf (cm2)
Horsepower (gross)
Hydraulic Oil Reservoir / System, Gal (l)
Min. Ground Clearance, In (mm)
Operating Weight, Lbs (kg)
Overall Height, Ft (mm)
Overall Length, Ft (mm)
Overall Width, Ft (mm)
Pump Capacity, G P M ( L P M)
Traveling Speed: High, Mph (kph)
Traveling Speed: Low, Mph (kph)
Arm Breakout Force, Lbs (kgf)
8554 (3880)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
26.4 (100) / 14.7 (55.8)
Blade Height, In (mm)
19.7in (500), Angle Blade: 20.1in (510)
Blade Width, Ft (mm)
7ft 2.6in (2200)
Bucket Breakout Force, Lbs (kgf)
14660 (6650)
Crawler Length, Ft (mm)
9ft 6.2in (2900)
Displacement (cu. In.)
203.3
Engine Model
Kubota V3307-CR-TE5
Fuel Reservoir, Gal (l)
30.4 (115)
Ground Contact Pressure Psi, Kgf (cm2)
Rubber/steel: 5.29 (0.372) / 5.35 (0.376), Angle blade rubber/steel: 5.56 (0.391) / 5.60 (0.394)
Horsepower (gross)
66.6
Hydraulic Oil Reservoir / System, Gal (l)
19.8 (75) / 38.6 (146)
Min. Ground Clearance, In (mm)
14.0in-15.4in (355-390)
Operating Weight, Lbs (kg)
Rubber/steel: 18520 (8400) / 18760 (8510), Angle blade rubber/steel: 19470 (8830) / 19620 (8900)
Overall Height, Ft (mm)
8ft 4in (2450)
Overall Length, Ft (mm)
21ft 1.9in (6450)
Overall Width, Ft (mm)
7ft 2.6in (2200)
Pump Capacity, G P M ( L P M)
22.3 (84.6) Variable x 2
Traveling Speed: High, Mph (kph)
3.0-3.1 (4.8-5.0)
Traveling Speed: Low, Mph (kph)
1.7 (2.7)
